Package Contents:
|
|
|
|
|
eX5 series chassis
|
|
EP-4PGF+ mainboard
(pre-assembled)
|
|
200W APFC quiet PSU
|
|
3G-Tek Cooling kit
|
|

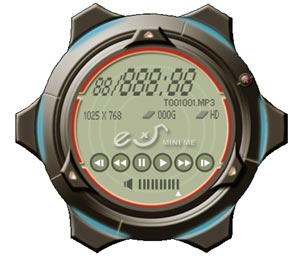

Music On-Now! utility and Windows GUI Application
|
|
LCM Module
|
|
|
|
|
|
|
|

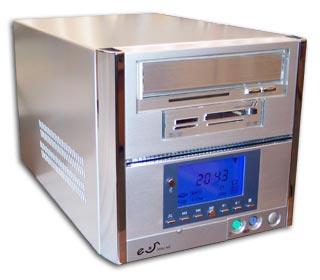

eX5-300S System specification:
|
|
|
|
Mainboard: EP-4PGF+
|
|
|
Intel 865G Chipset with ICH5
|
Mainboard
manual
5 mb
|
|
Socket 478 (533/800MHz); HT Technology
|
|
2
DIMM slots for Dual Channel DDR 400
|
|
2
x P-ATA for ATA-100, 2 x S-ATA
|
|
1
x PCI , 1 x AGP 8X
|
|
5.1 Channel Audio onboard
|
|
|
|
Front panel:
|
|
|
USB 2.0 x 2
|
Installation
manual
10.2 MB
|
|
Headphone x 1
|
|
MIC x 1
|
|
IEEE1394 x 1
|
|
5
1/4" bay for CD/DVD player / recorder
|
|
3
1/2" bay card reader, supporting a variety of storage cards as;
memory stick, secure digital, compact flash and smart media.
|
|
PS/2 Keyboard and PS/2 Mouse
|
|
|
|
Rear panel:
|
|
|
USB 2.0 x 4
|
|
|
IEEE1394 x 1
|
|
Serial port x 1
|
|
Paralell port x 1
|
|
S/PDIF Out 1x Coaxial and 1x Optical
|
|
VGA (15Pin) x 1
|
|
LAN 1x 10/100 Ethernet
|
|
|
|
Chassis:
|
|
|
Material:
Aluminum Alloy (special coated to repell dust)
|
|
|
Dimension:
(W) 200 x (H) 180 x (L) 300
|
|
Drive
bay: 1 x 5.25" bay; 2 x 3.5" (1 hidden front front panel)
|
|
|
